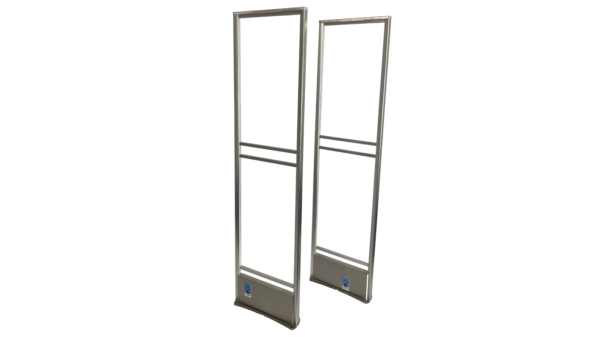

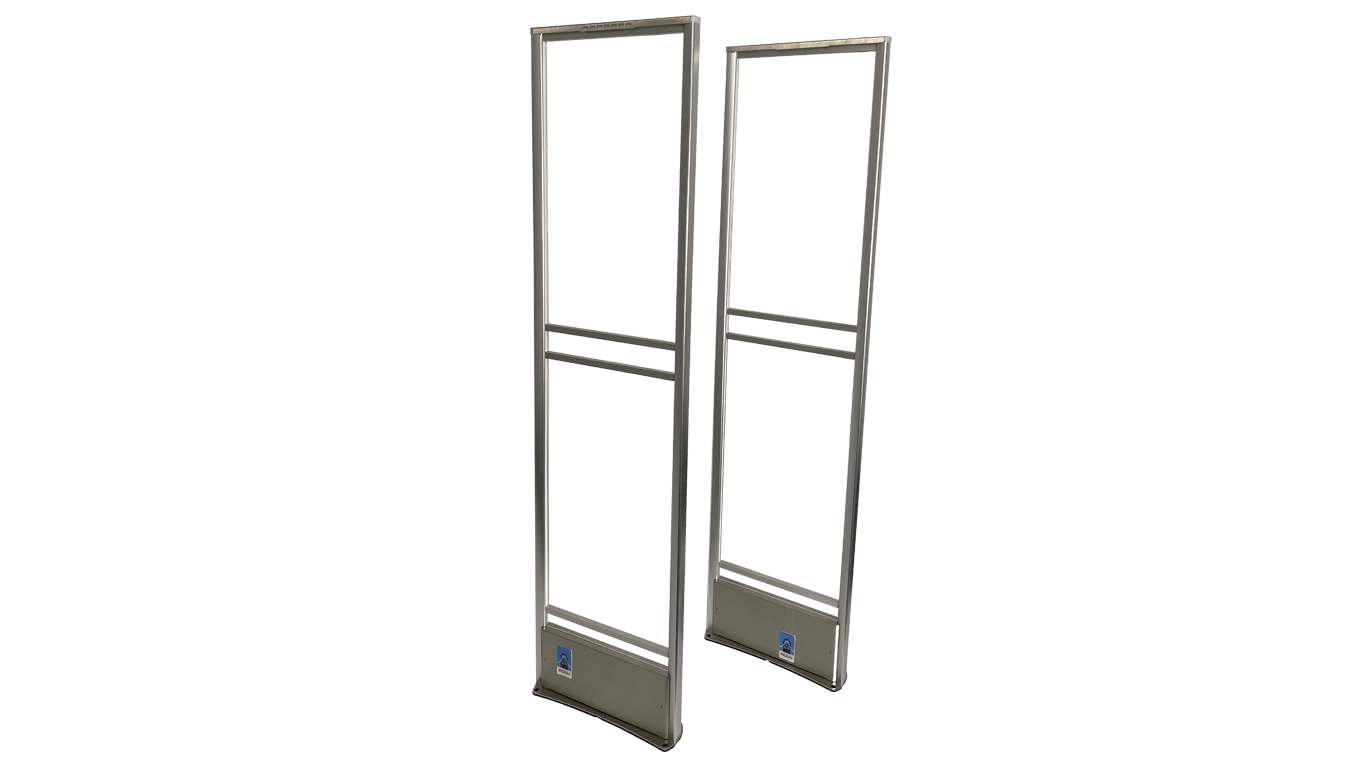

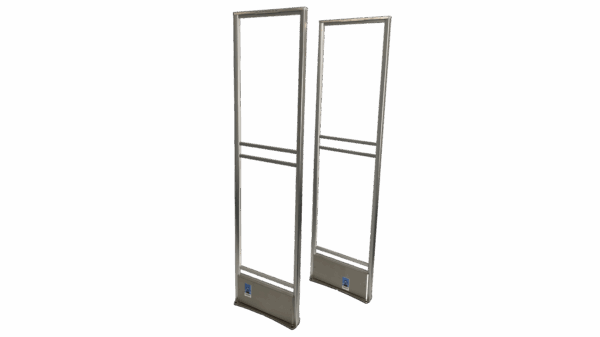

IRIDIUM SIGMA AM
AM System 58 kHz for tags and DR labels
Technical Specifications of Sigma AM:
Frequecy: 58kHz
Weight Master: 6,4 kg
Weight Slave: 5,8 kg
Power Supply: PS 18V AC 60VA

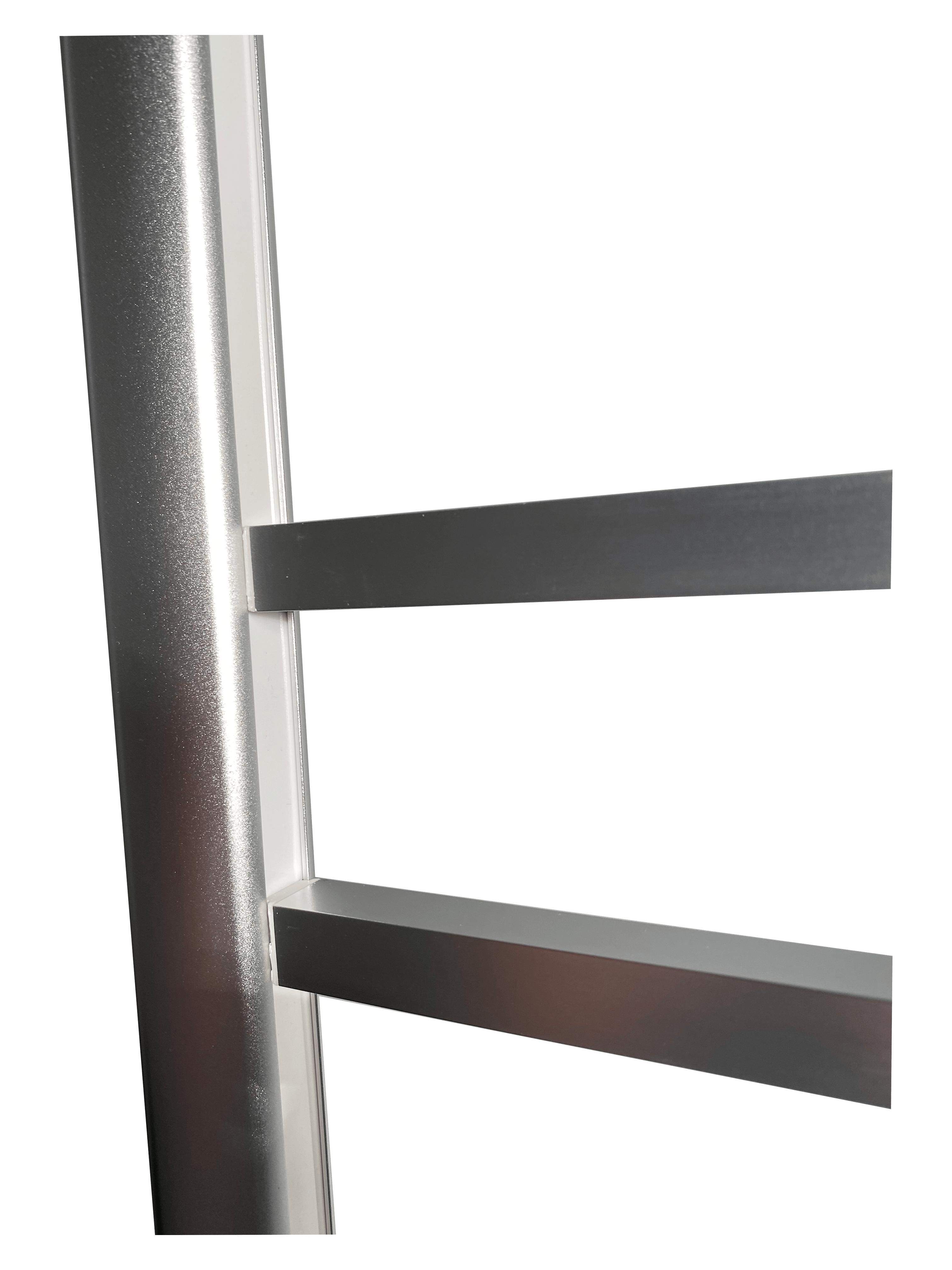

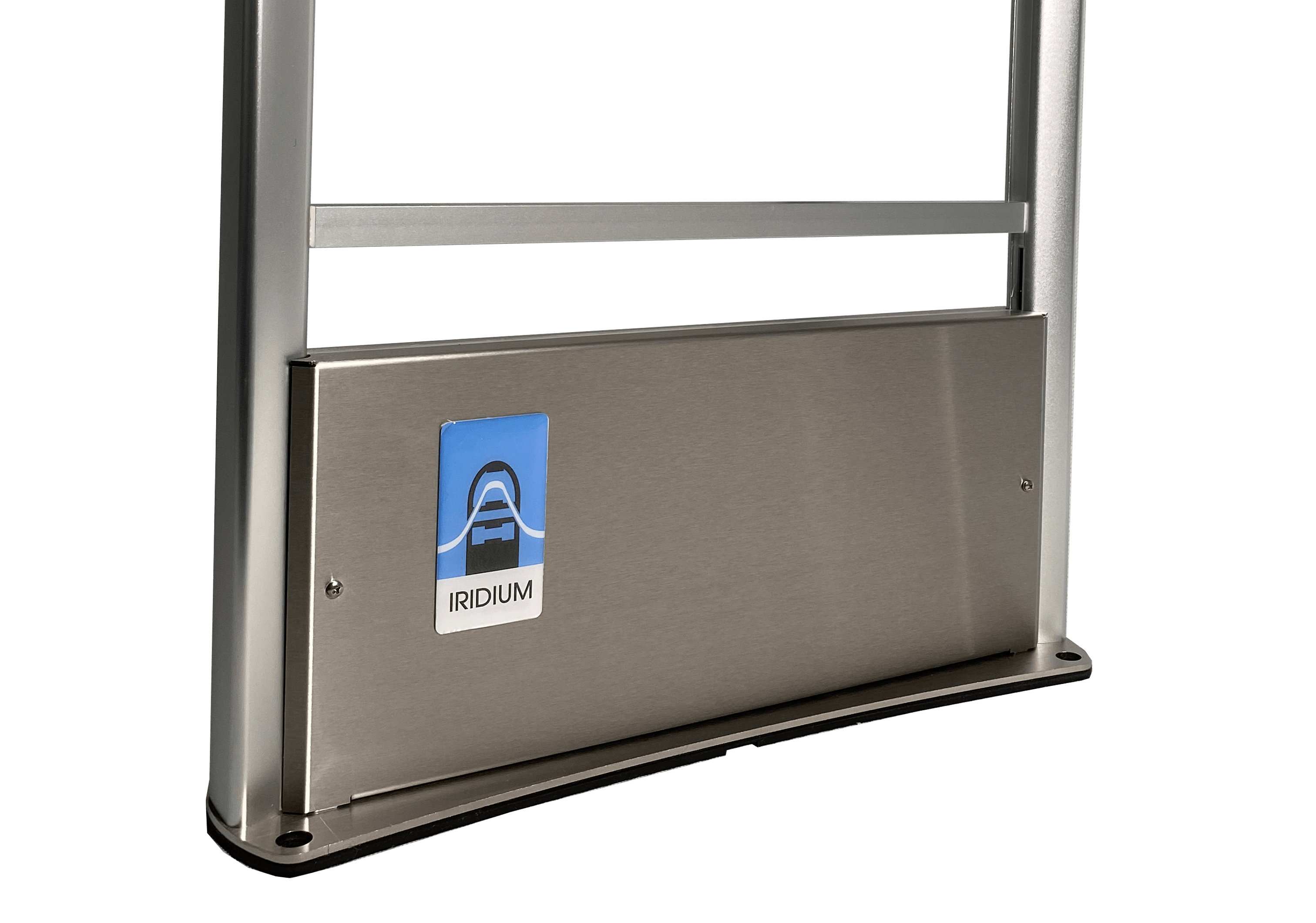

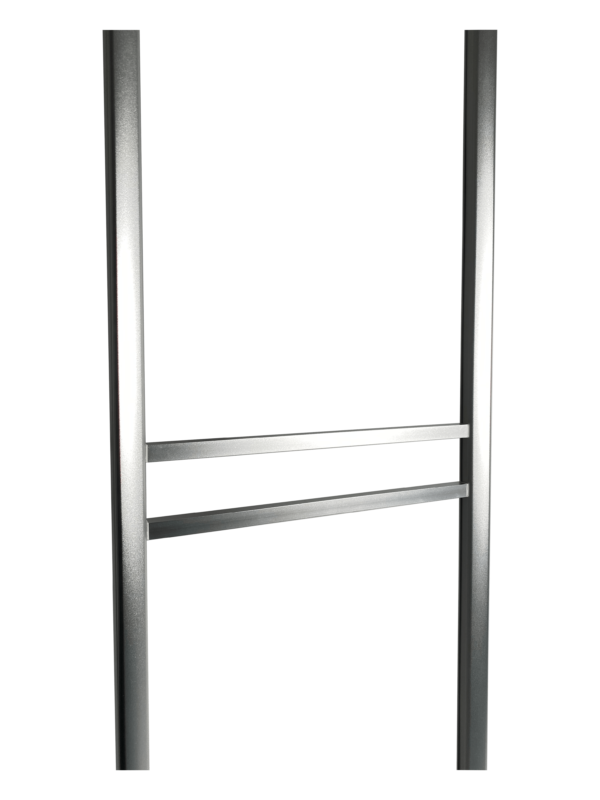

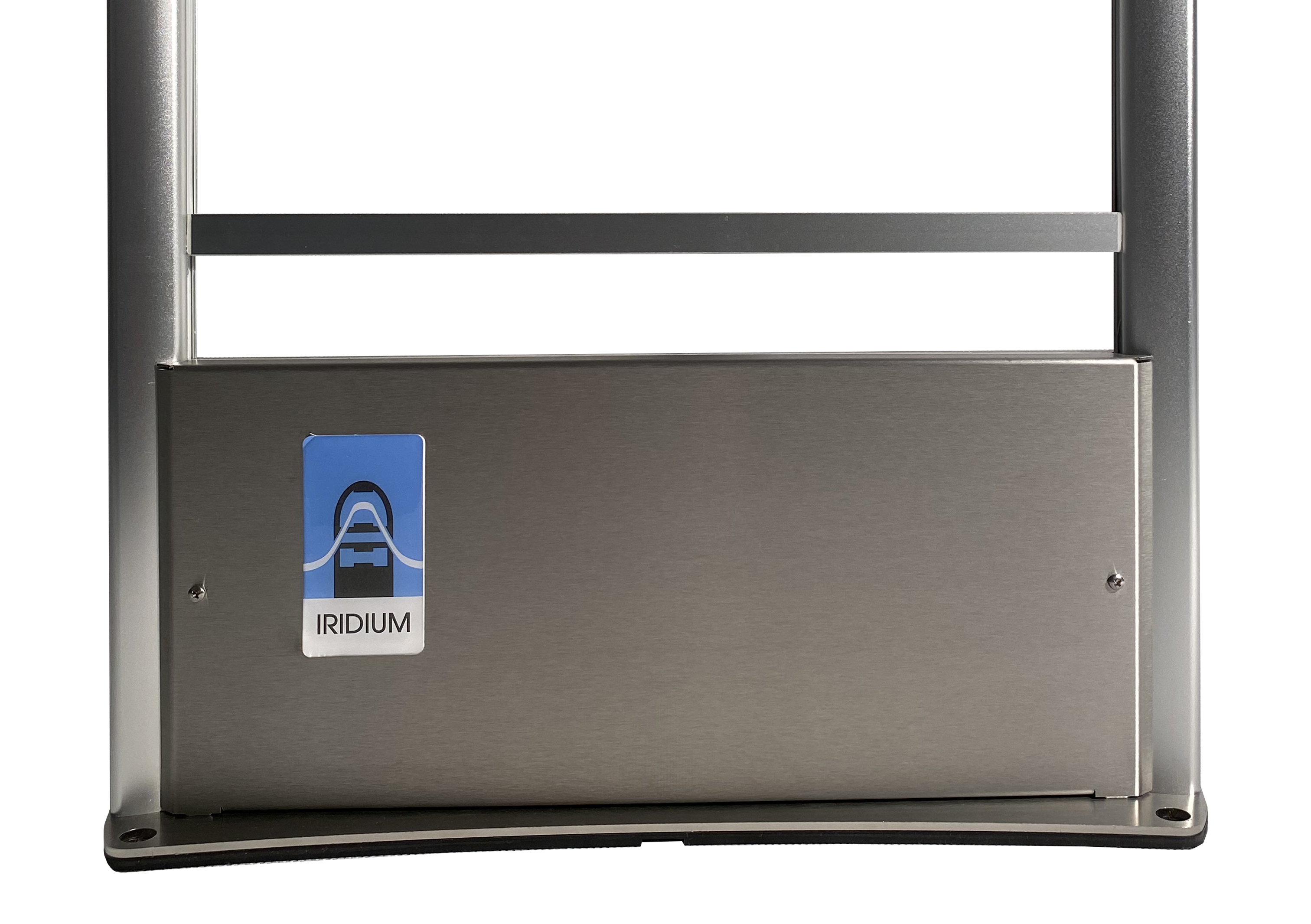

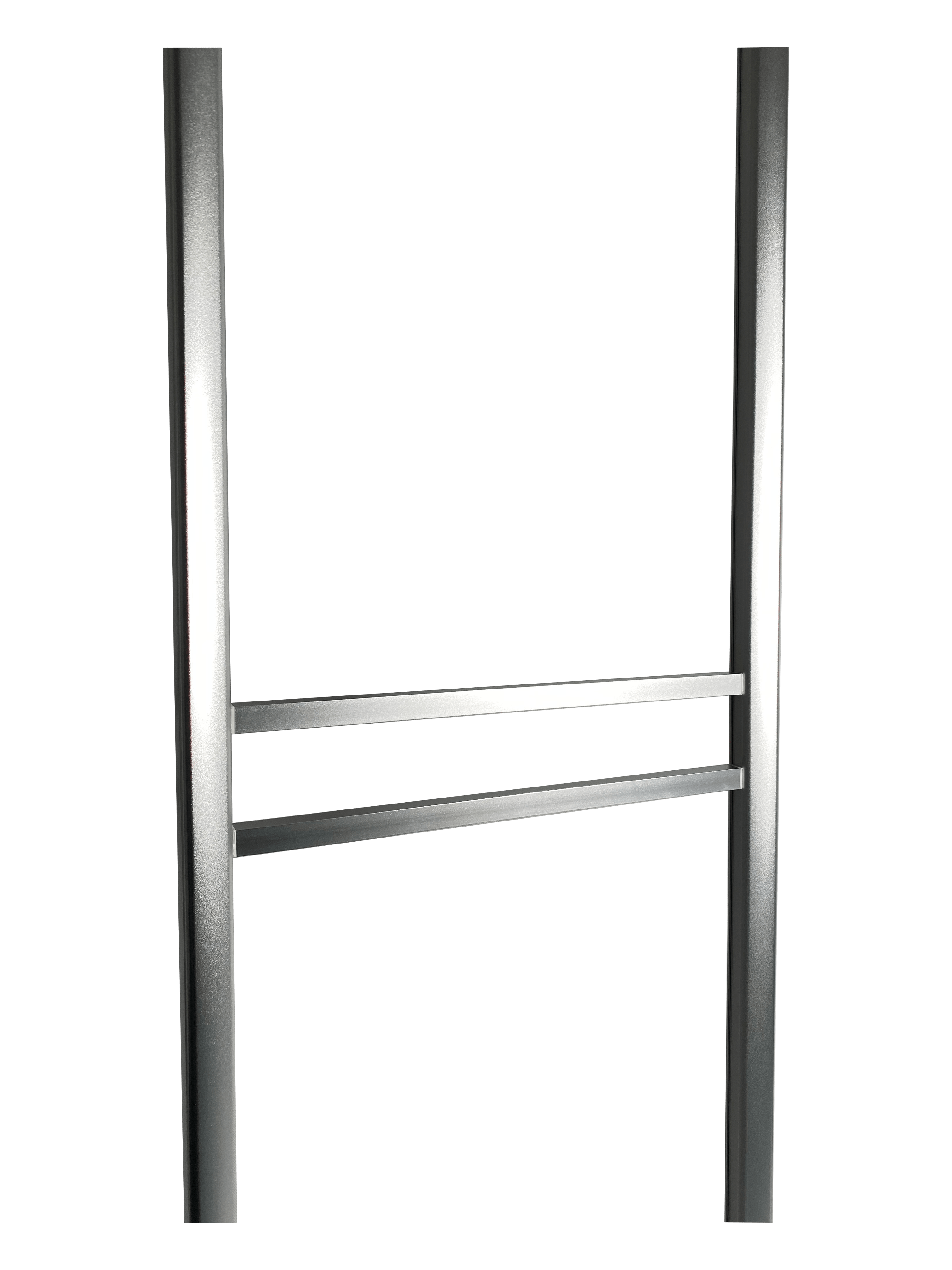

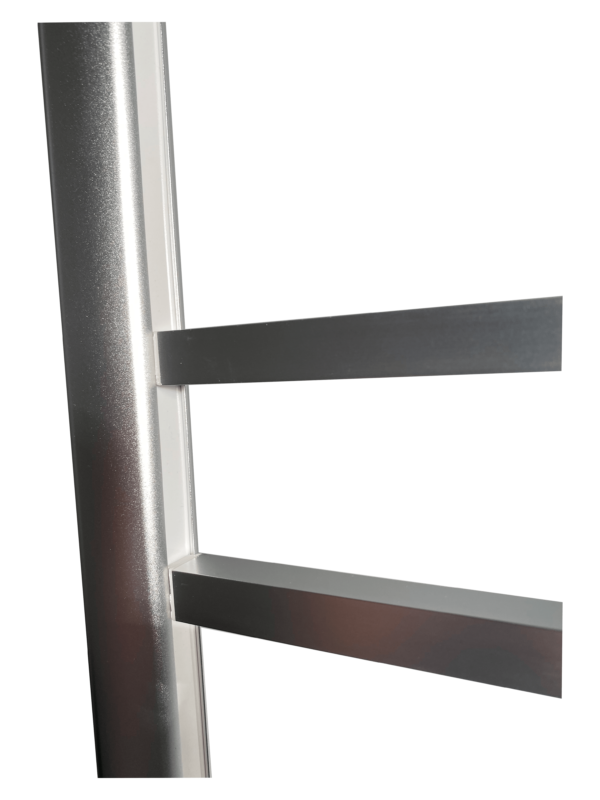

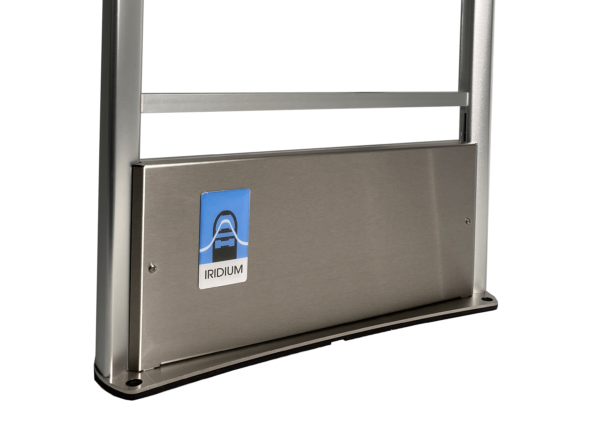

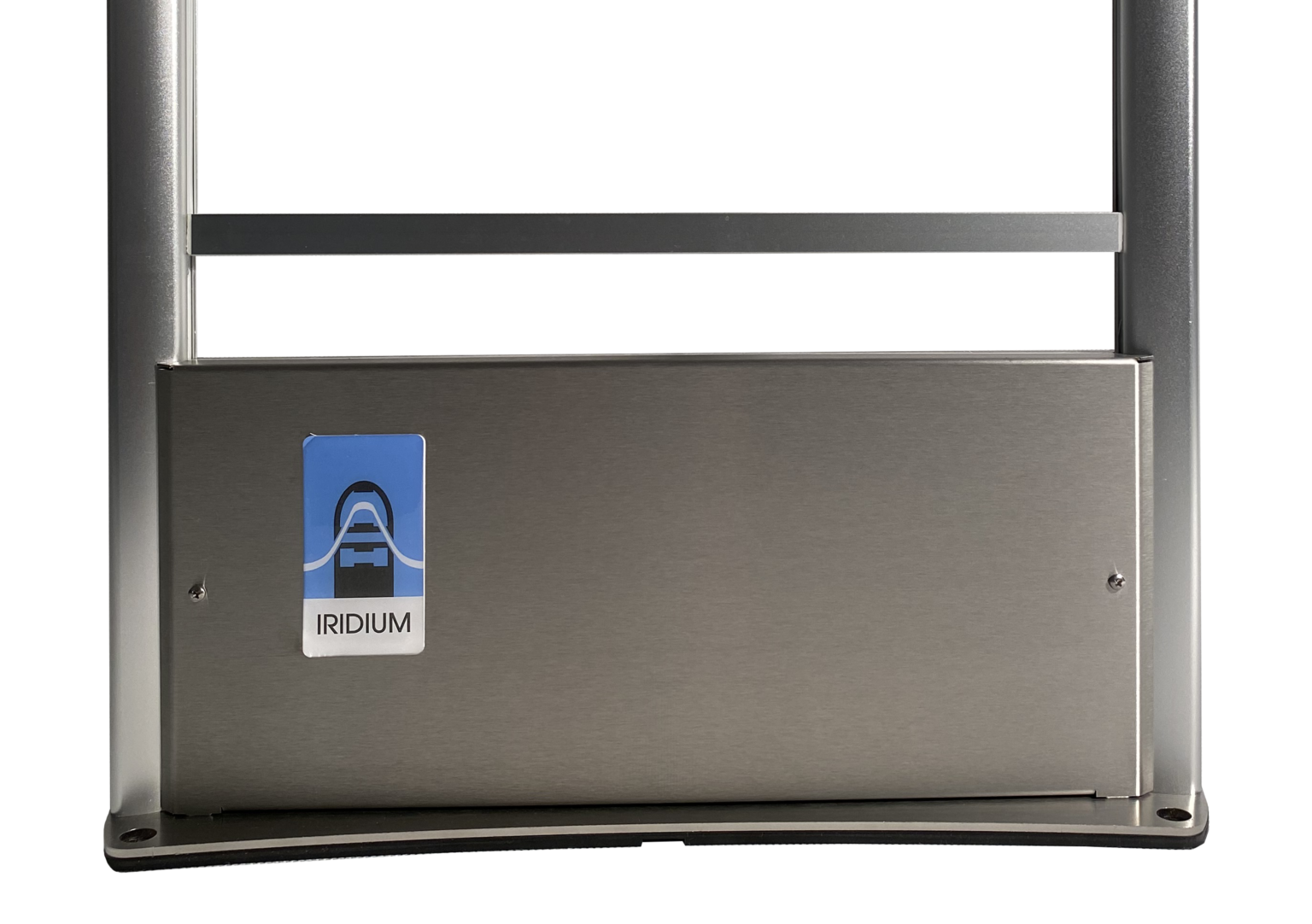

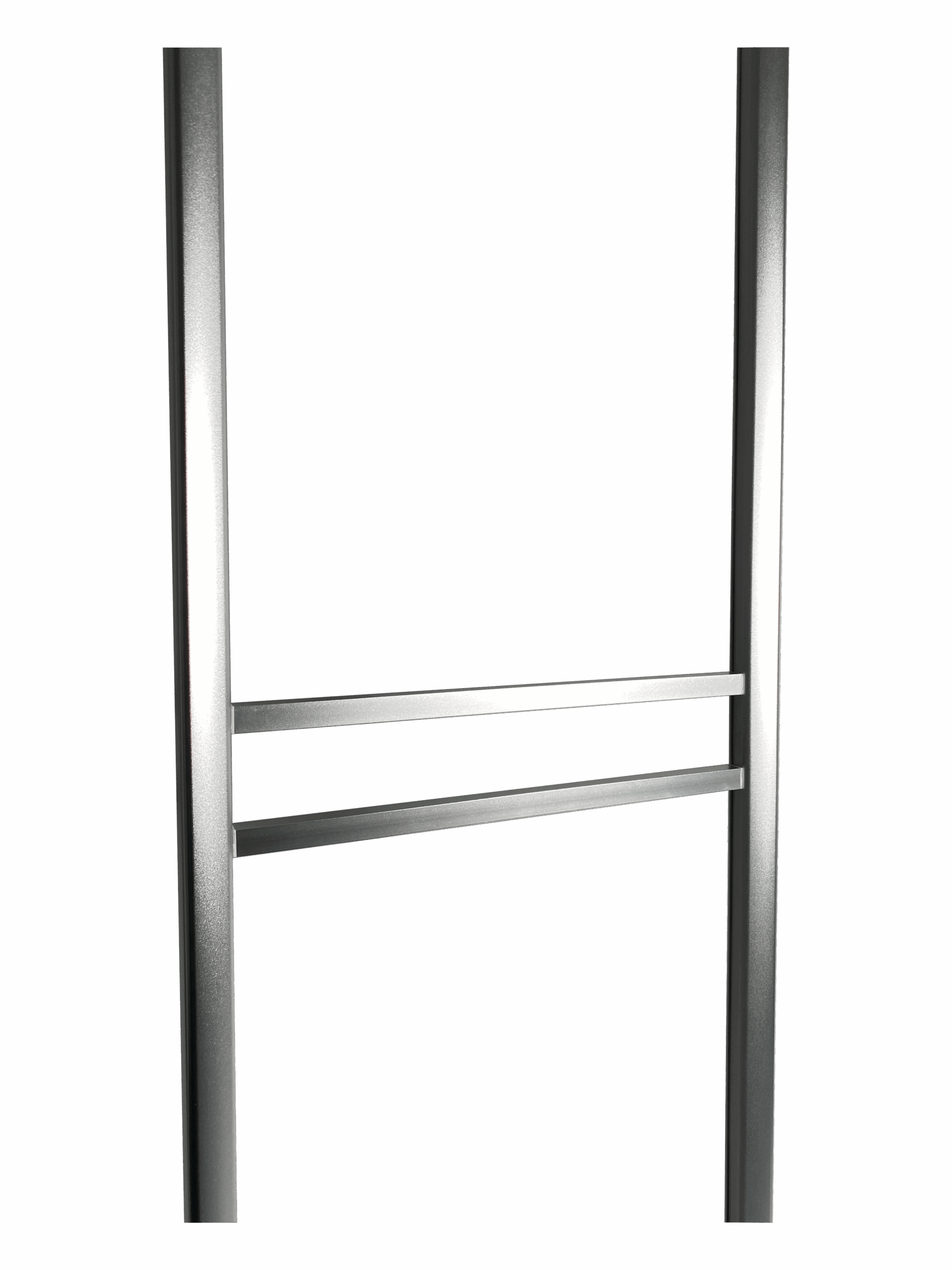

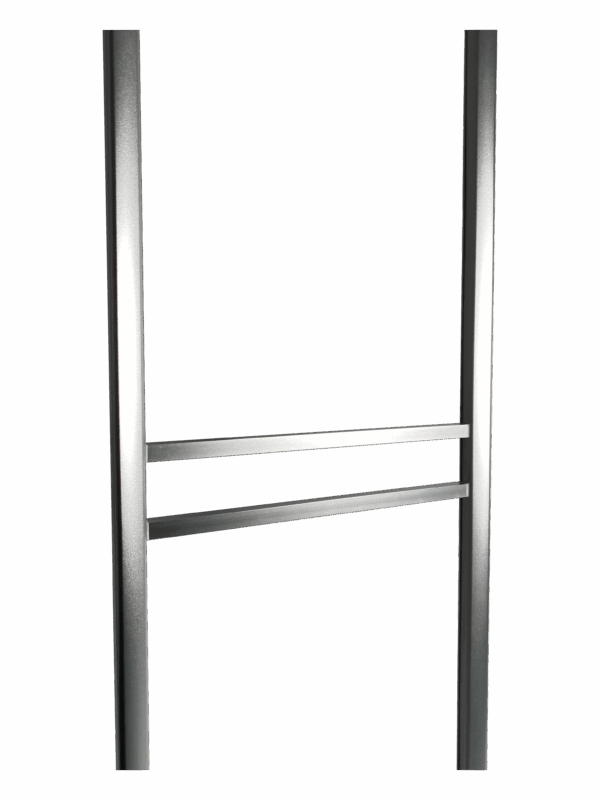

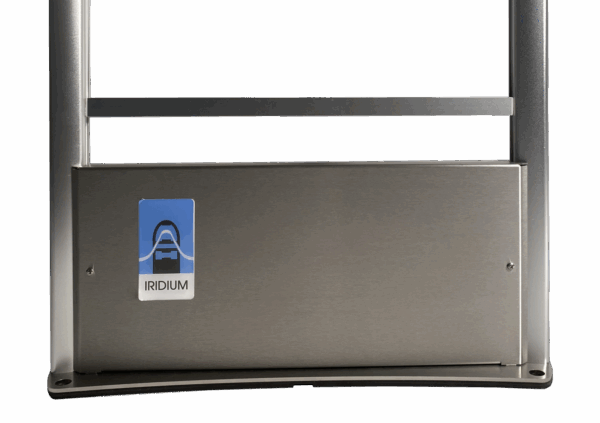

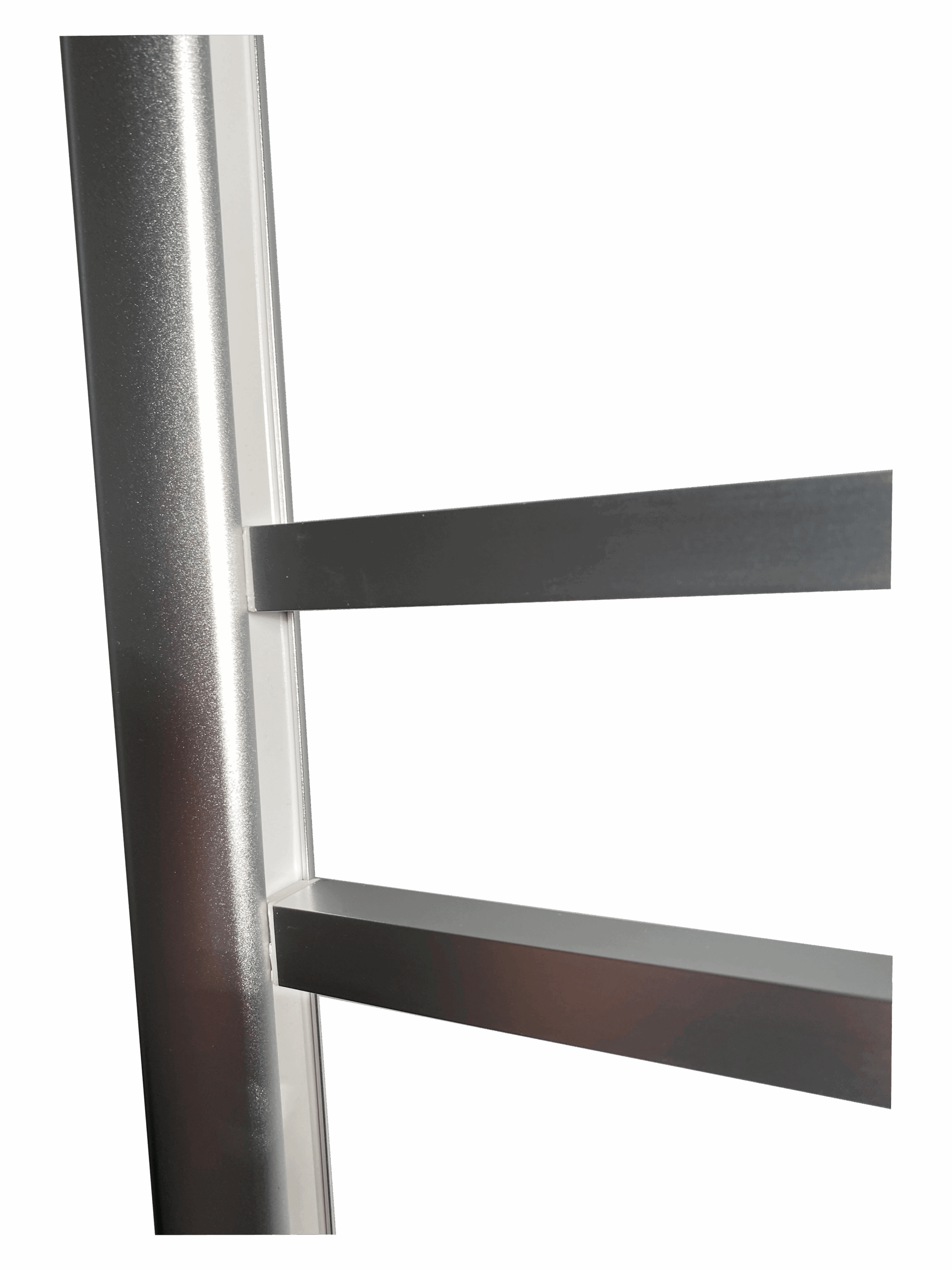

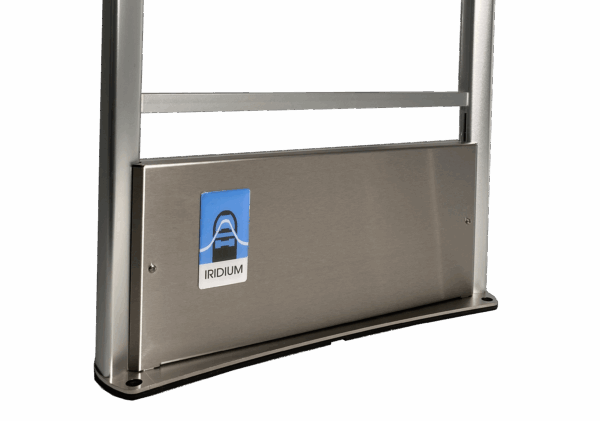

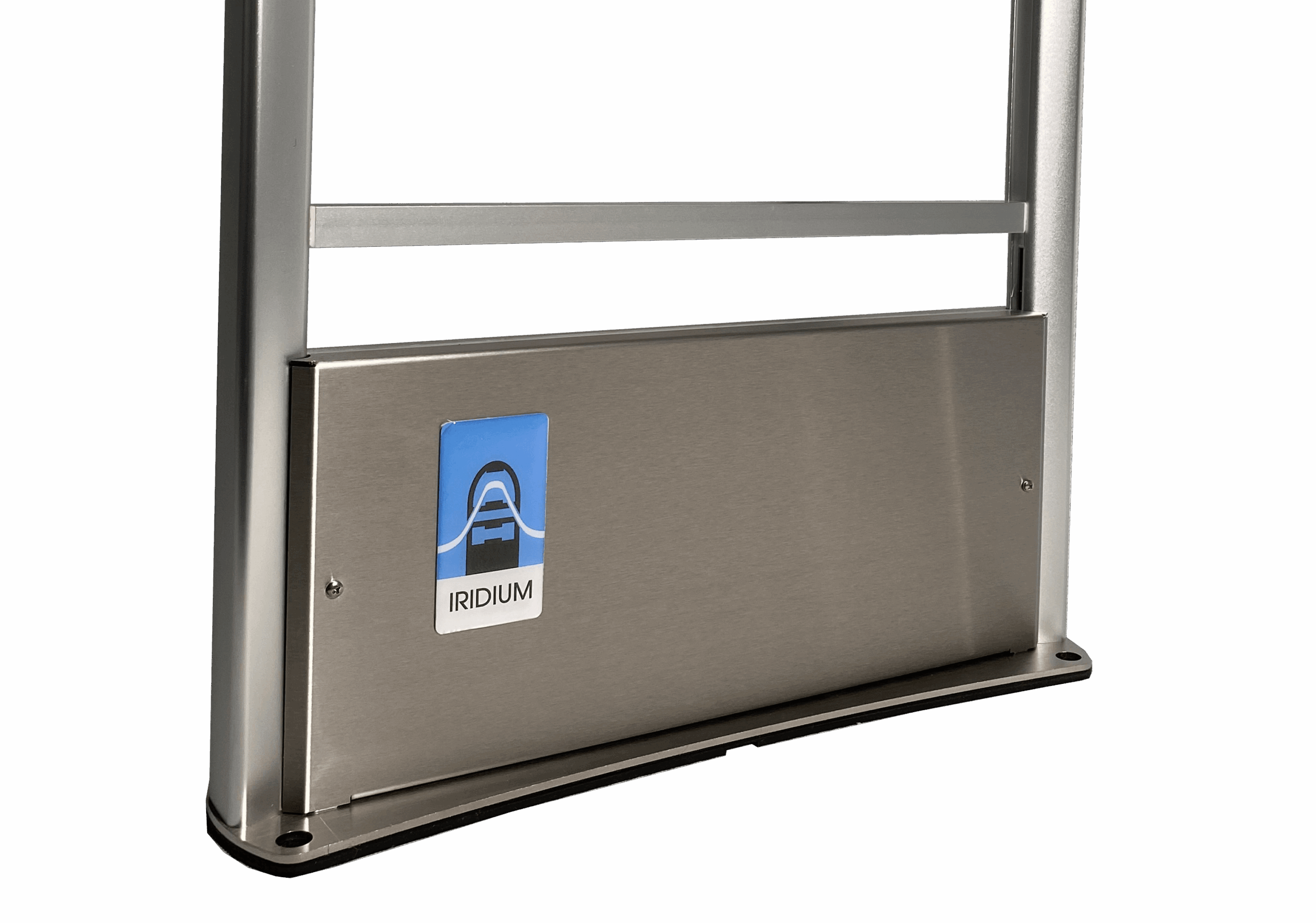

Material: Anodized aluminium profile stainless steel box & base plate ABS + transparent plast

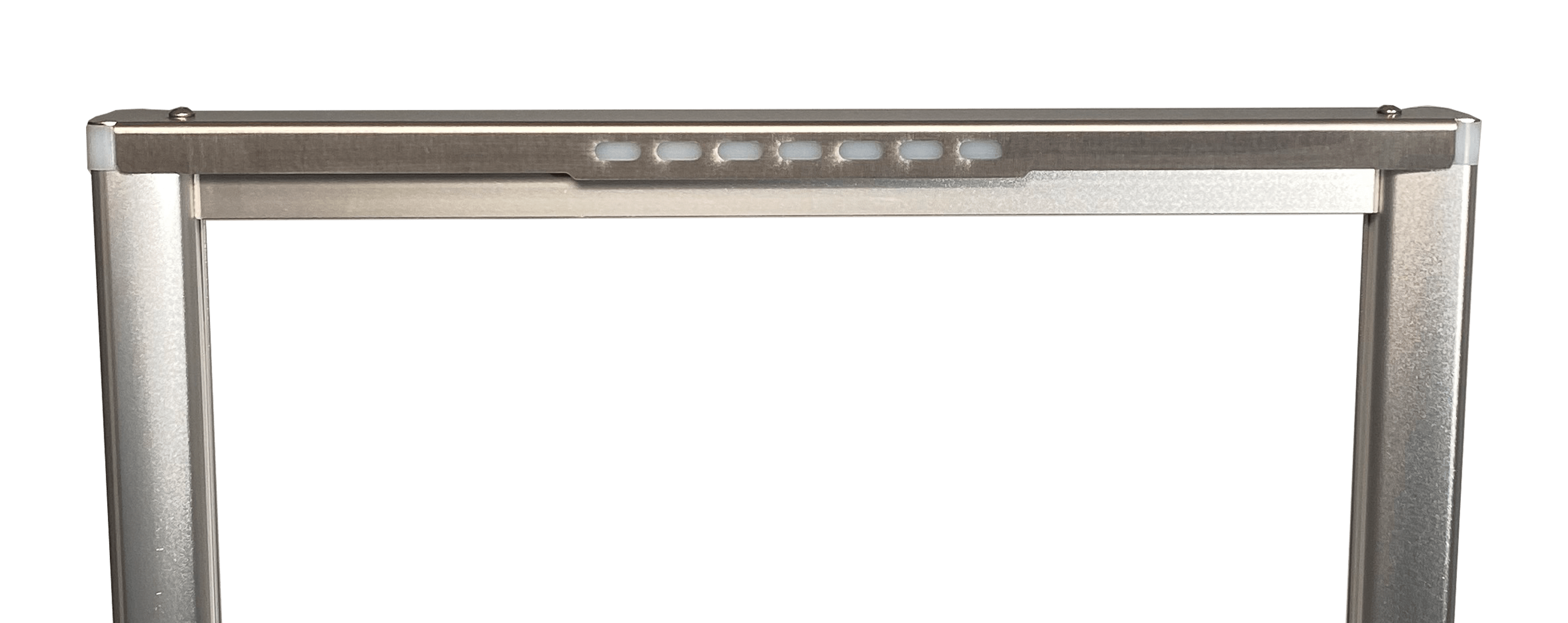

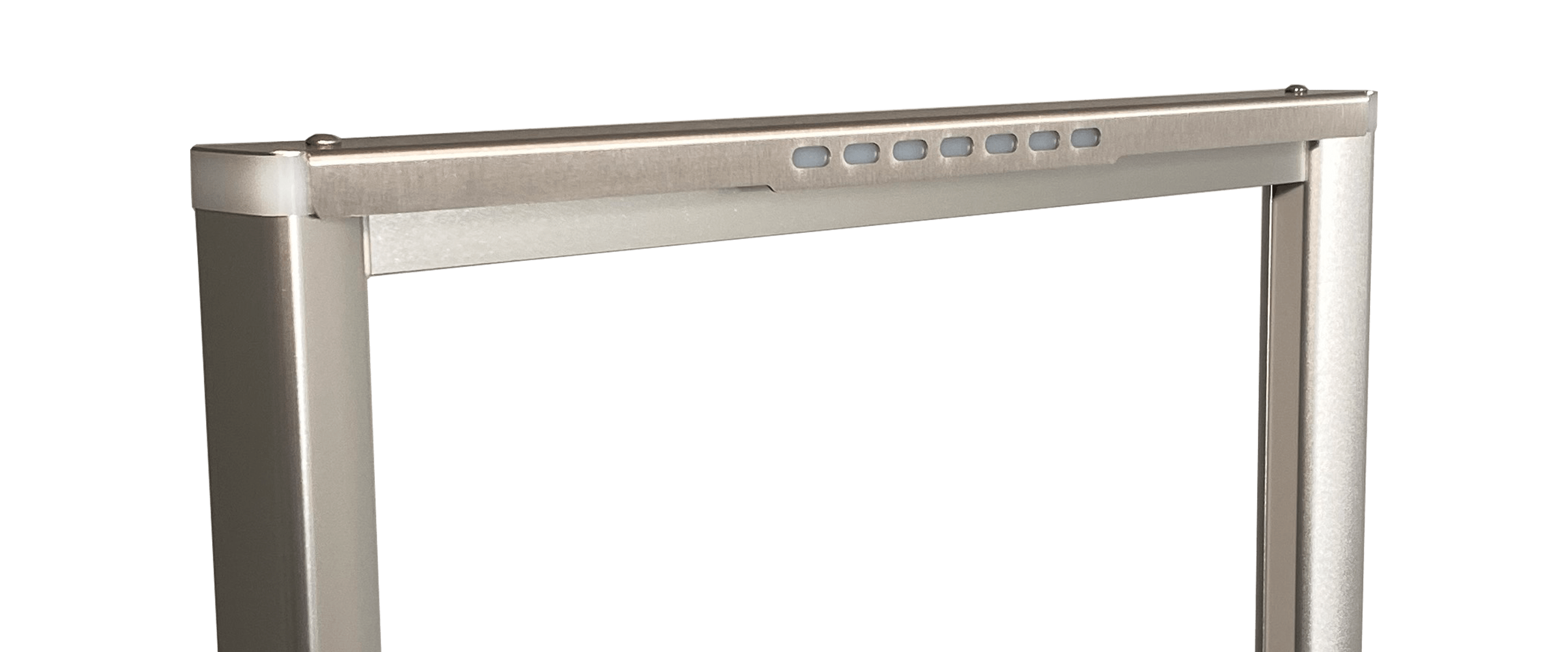

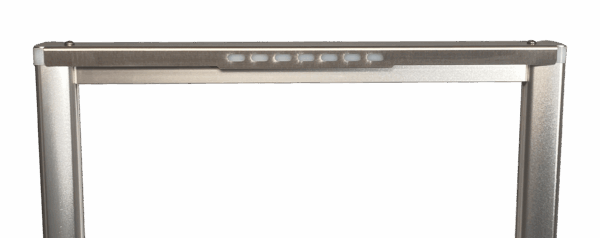

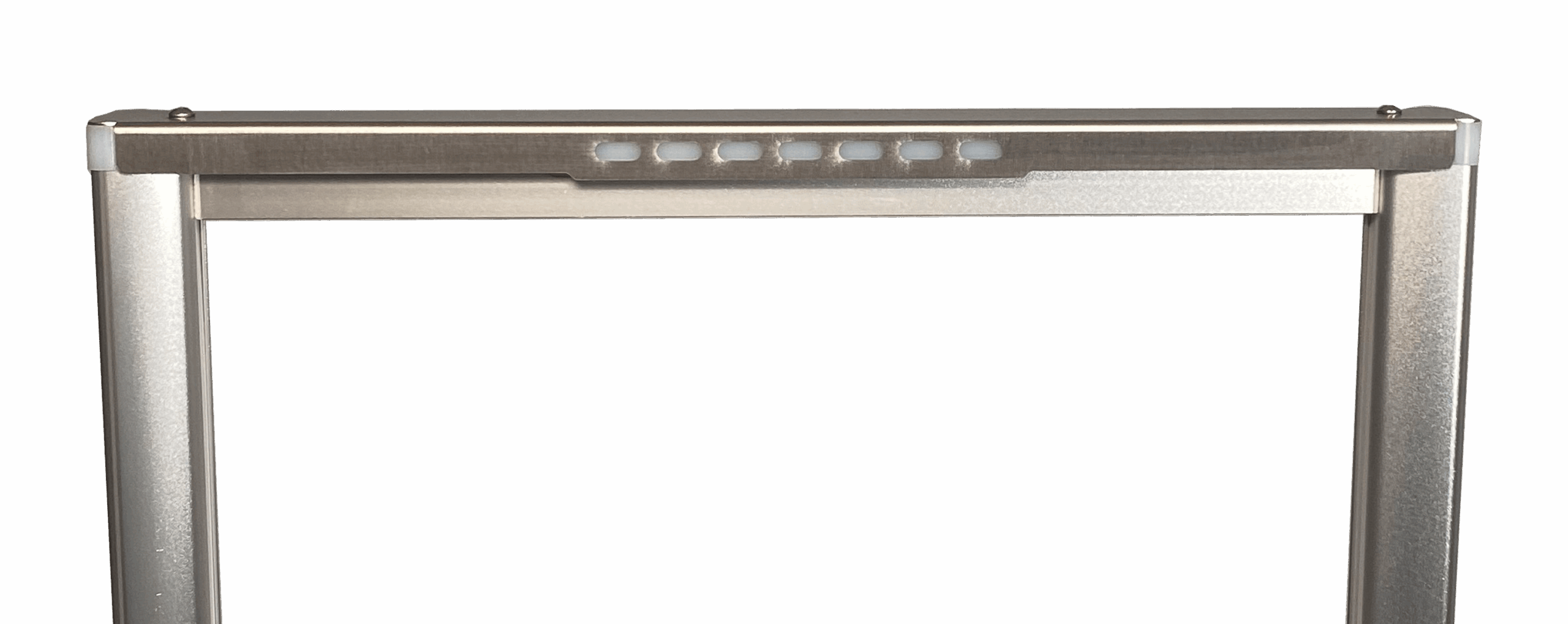

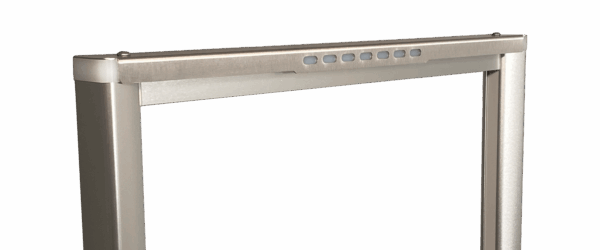

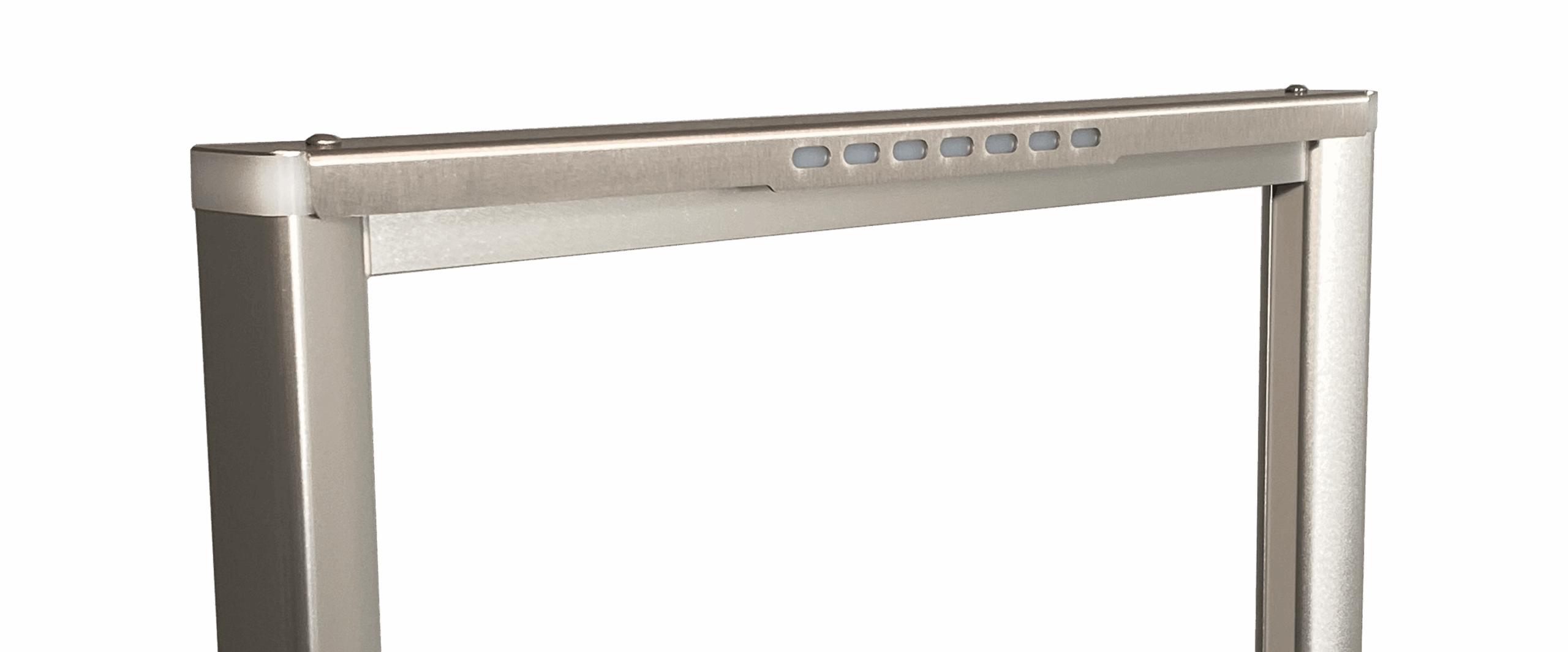

Alarm light: red colour LED with white plastic cover
Alarm sound: small piezosirene, 100dB loudness
General information:
◉ Acousto Magnetic System operating at 58kHz
◉ Detects Dr.labels & hard tags
◉ Fully digital System with the latest DSP technologyusmod tempor
◉ Minimum false alarm
◉ Remote diagnostic available
◉ Available in Mono and Dual version as well
Remote Control via internet:
◉ All parameters can be set up via remote WiFi internet connection
Dimensions:
Detection distances table:
| Dual: | |
| Hard tag | 2 m |
| DR labels | 1,6 m |
| Mono: | |
| Hard tag | 1,2 m |
| DR labels | 1 m |
| Detection of tags depends also on their quality (Q-factor values) |
Drawings and technical information of this data sheets issued for marketing purposes only and may not be reproduced or used to manufacture anything shown or referred to hereon without permission from IRIDIUM LTD.

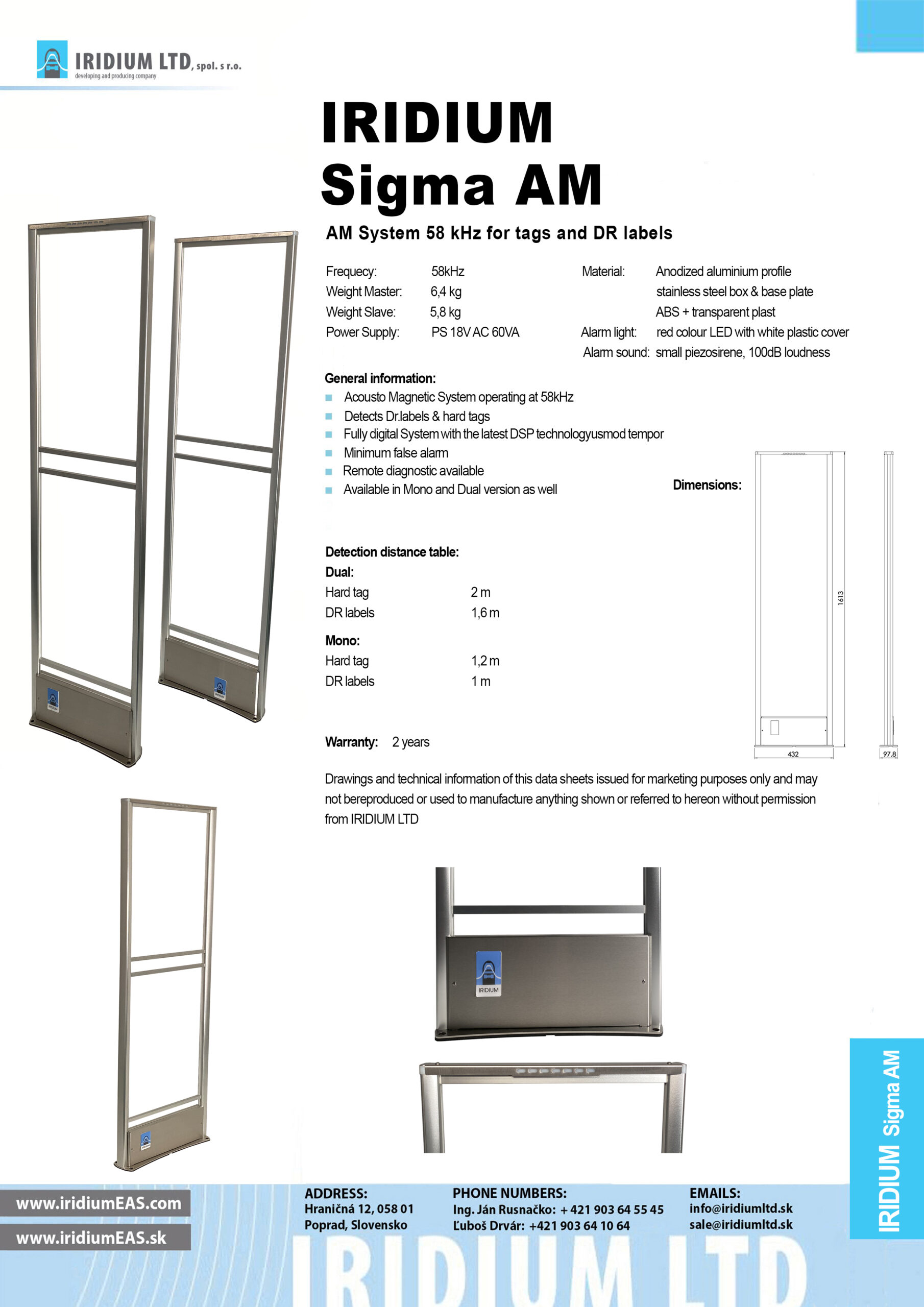

Please click on photo and download datasheep:
