IRIDIUM OMEGA Advertisement dual

IRIDIUM OMEGA Advertisement dual

RF Dual EAS RX + TX System 8,2 MHz for hard tags and paper labels


OrderForm






  • Description
  • Reviews (0)

Description

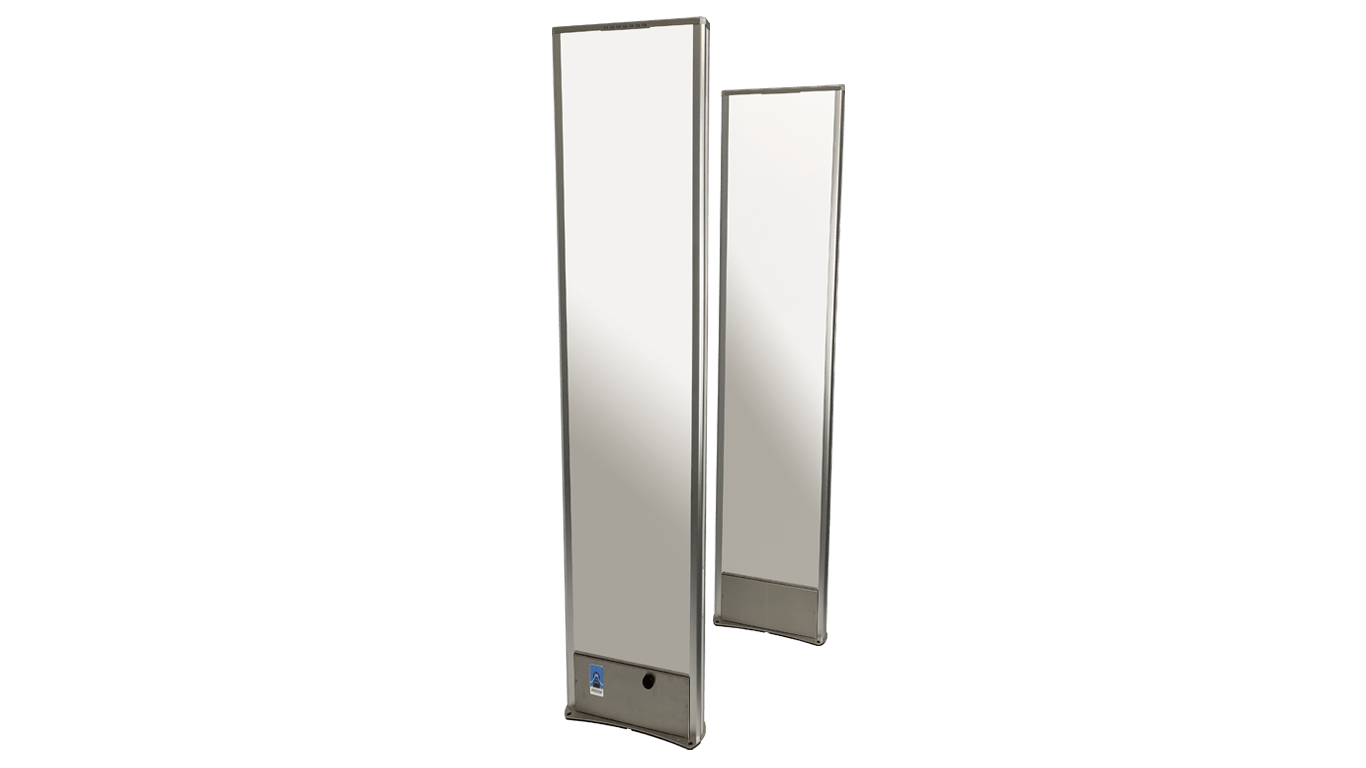

IRIDIUM OMEGA ADVERTISMENT RF DUAL EAS SYSTEM 8,2 MHz

Technical Specifications of Omega Advertisment RF Dual System:

Frequency: 8,2MHz RF
Weight: RX 10,42 kg ; TX 10,46 kg
Power supply: 15V AC
Antenna: standalone

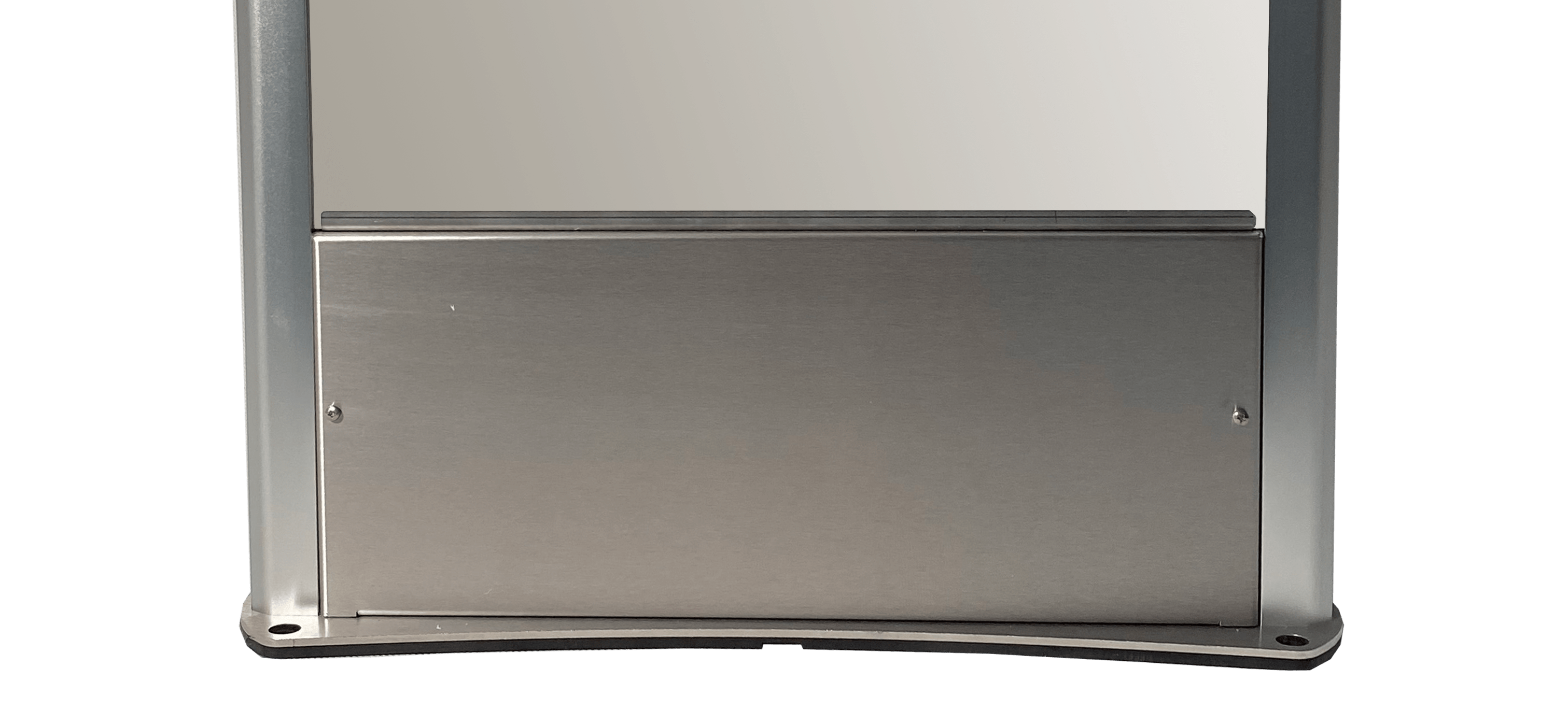

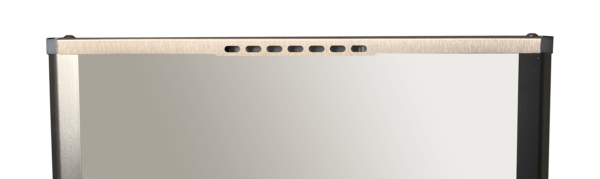

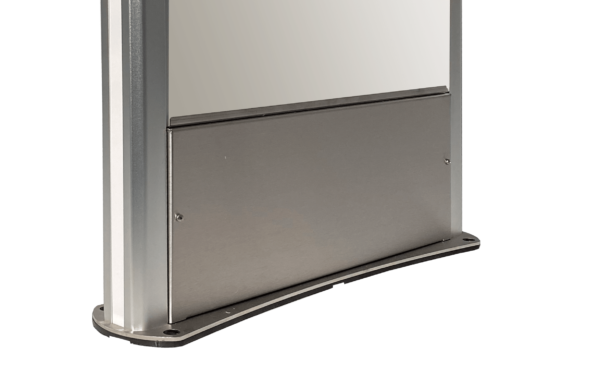

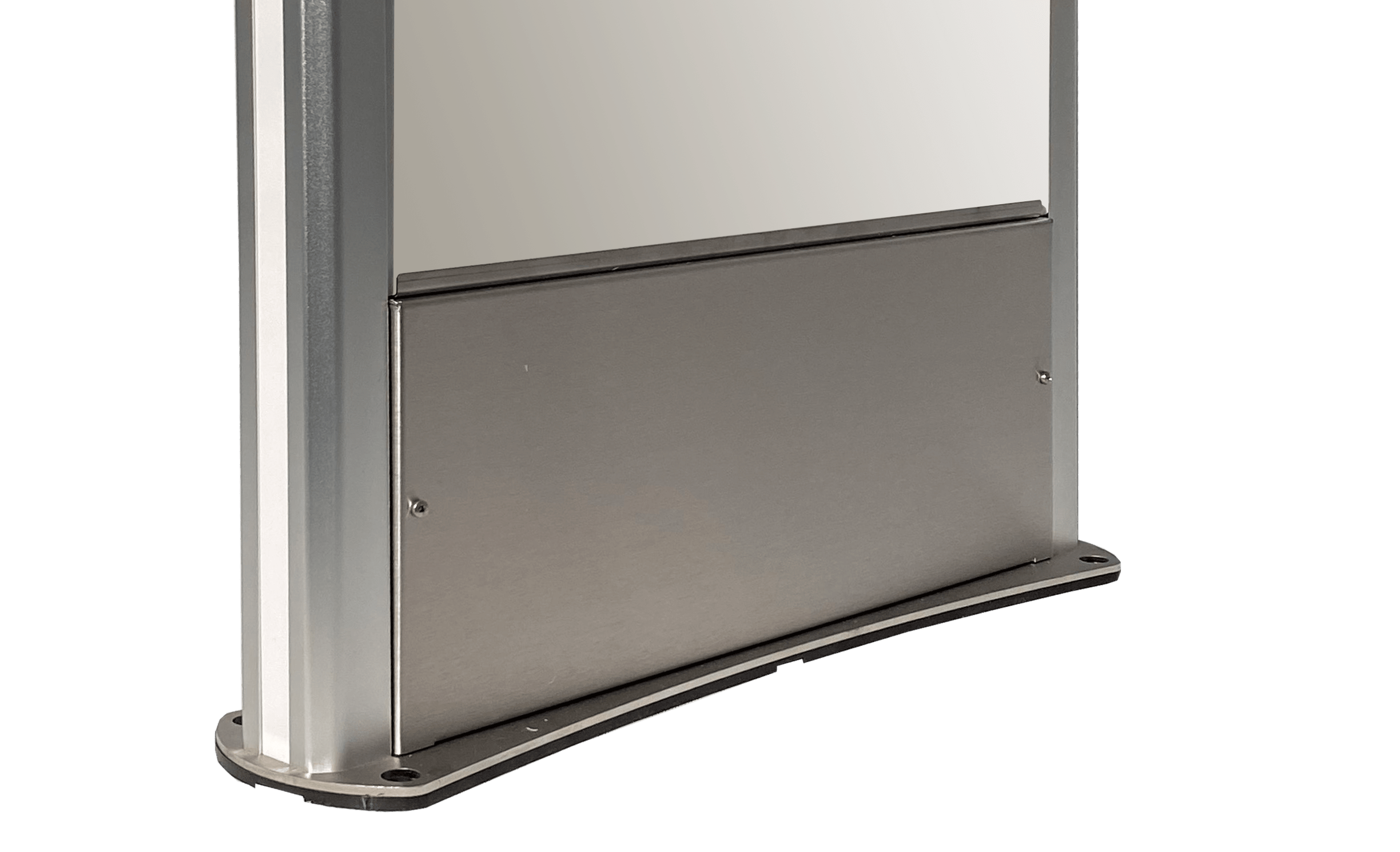

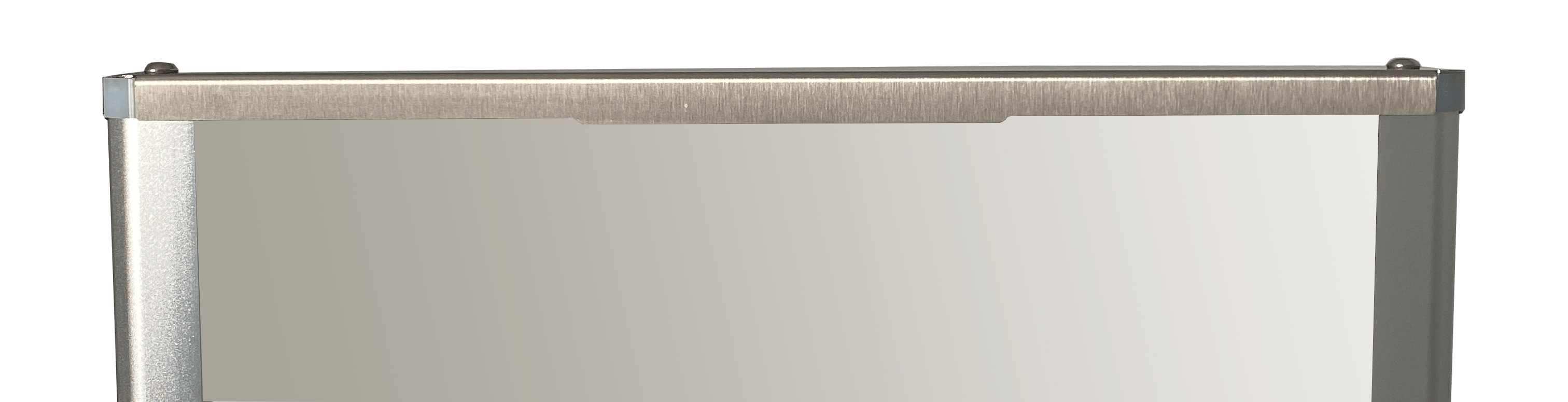

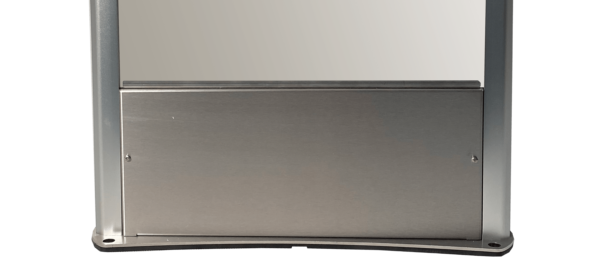

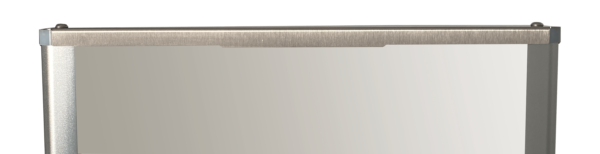

Material: powder coated aluminium profiles, stainless steel box
and base plate, white ABS and transparent plastics
white ABS + transparent plast on both sides

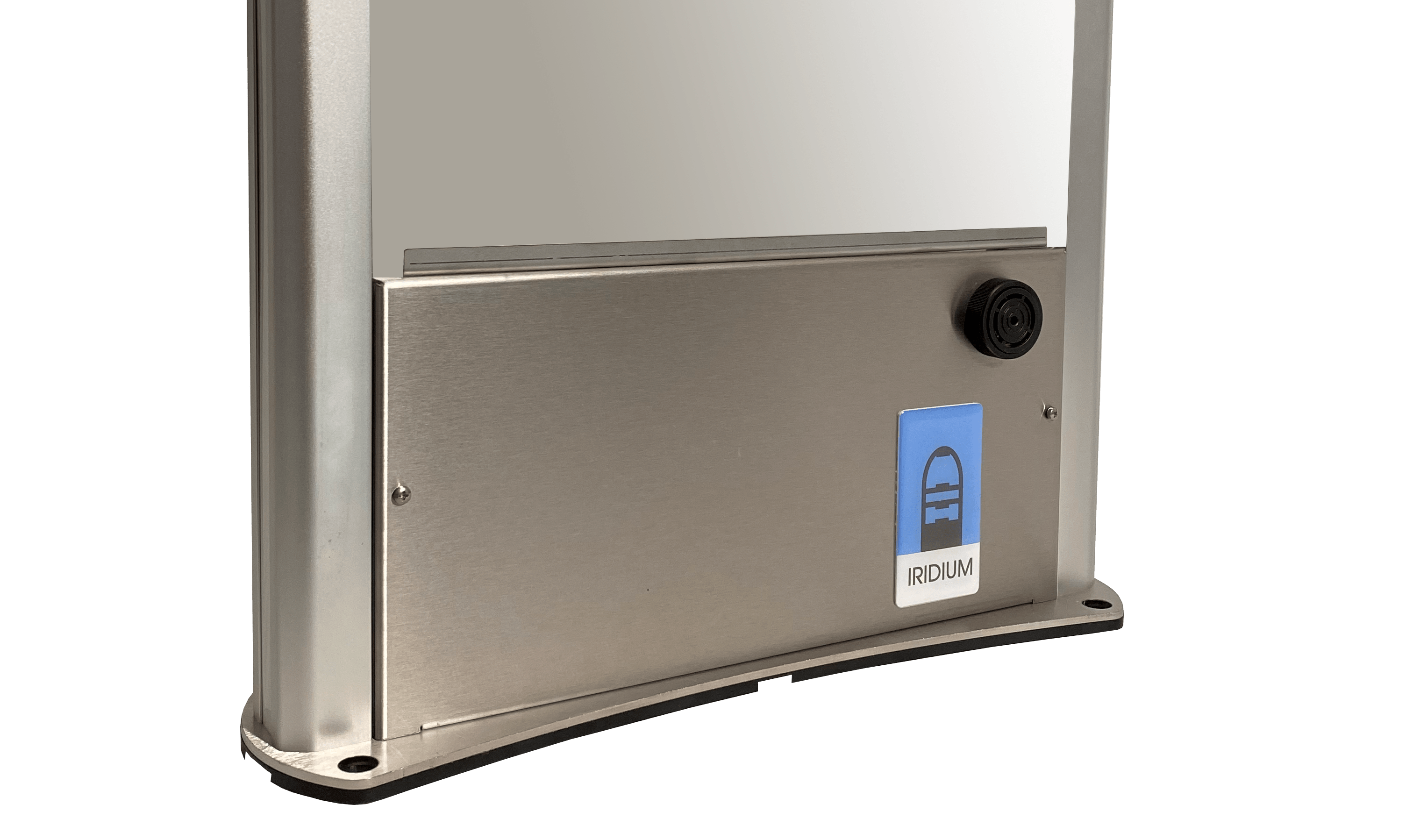

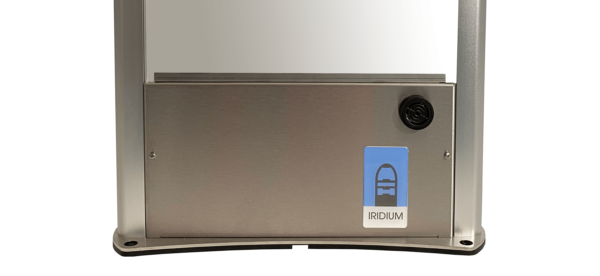

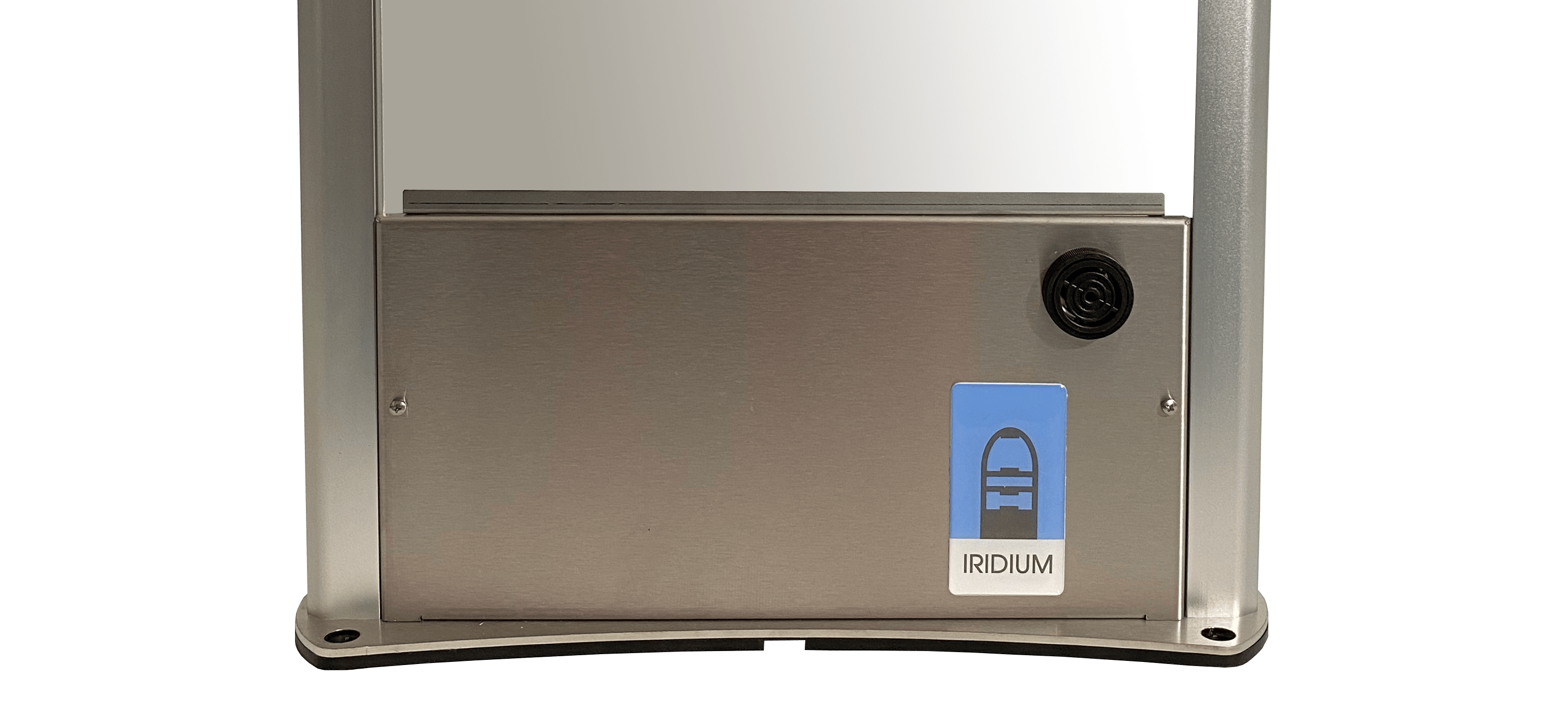

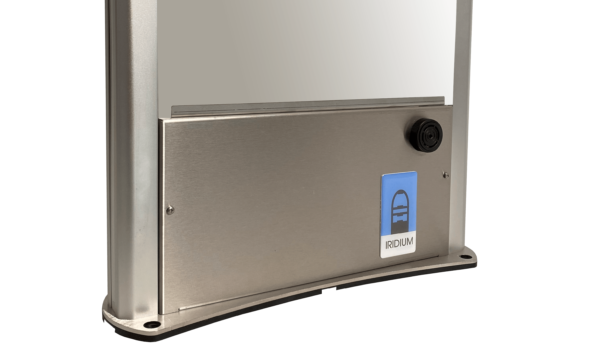

Alarm sound: piezosirene, 100dB loudness

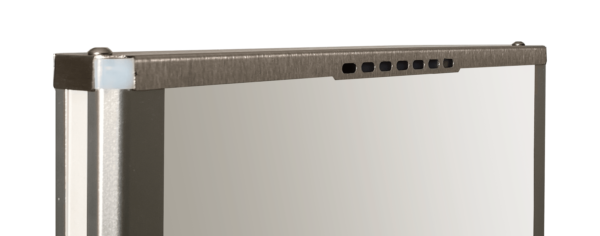

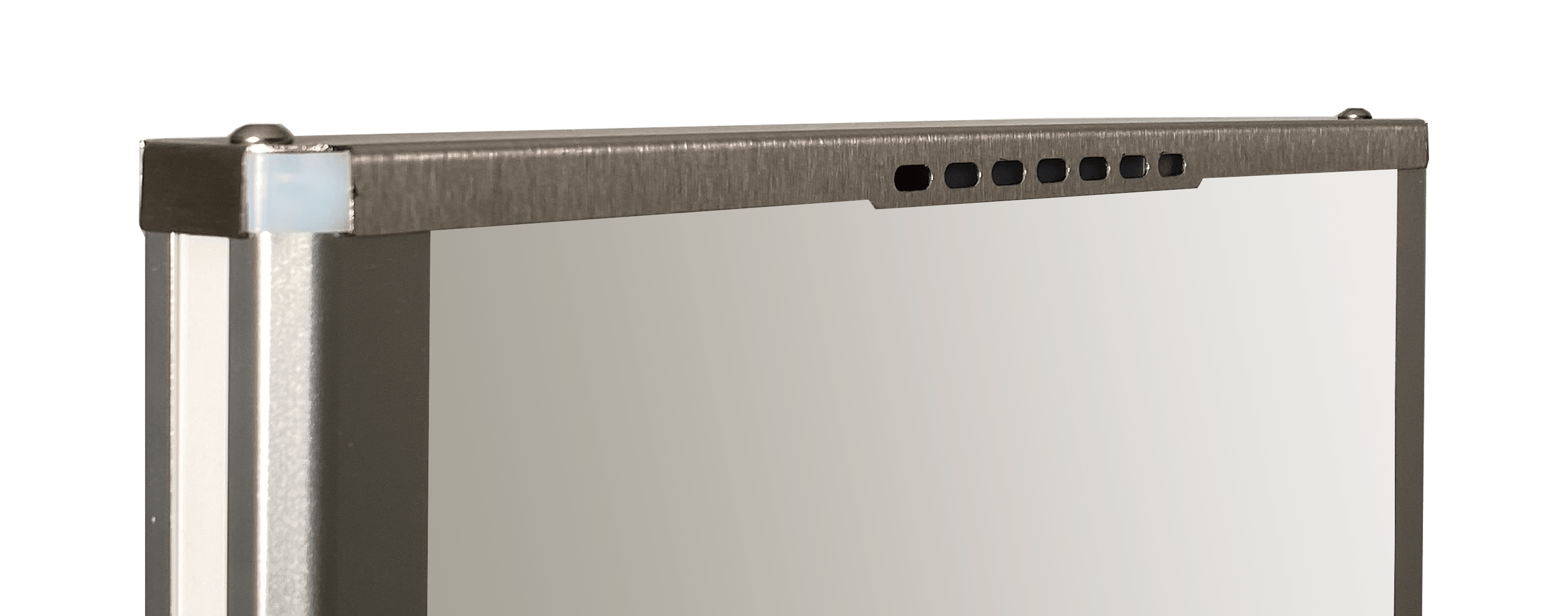

Alarm light: red color LED, placed on the top of both side
of RX antenna

General information:

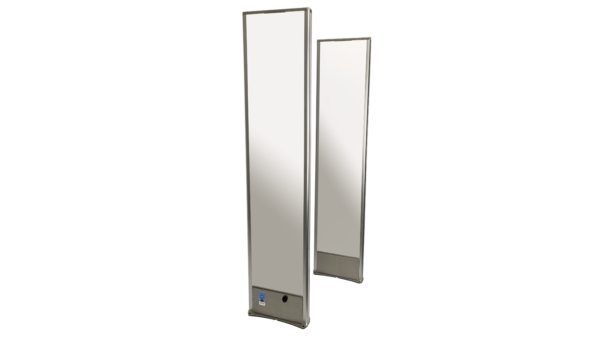

◉ Consists of two independent antennas – TX (transmitter) and RX (receiver) – connected by a data link
◉ Possible to synchronize a virtually unlimited (up to 100) number of systems
◉ Detects all types of RF (radio frequency) 8.2MHz tags – hard tags and paper labels as well
◉ Features stability and good detection in noisy environments
◉ Can be supplied by AC 18V or DC 24V adapter

Electronic:

◉ Electronics boards (RX and TX) are fully digital, using real-time signal processing
◉ Selecting different modes and setting the parameters can be done using buttons
◉ Values are shown on the display of the electronics board (both TX and RX)
◉ The sweeping frequency can be set between 150Hz and 400Hz
◉ The electronics are covered with a thin metal cover which provides shielding from outside noise and prevents
unauthorized interference. All important data needed for the setting of the electronics are printed on the cover.
◉ It is very easy to replace the electronics if necessary
◉ The frequency of the transmitter is continuously and automatically tuned to the adjusted value (between 7.45MHz and
8.75MHz) with a step of 50kHz

Dimensions:

Detection distances table:

paper labels 3 x 3,9cm 1,0 – 1,1 m
paper labels 4 x 4cm 1,1 – 1,2 m
paper labels 5 x 5cm 1,15 – 1,25 m
hard tag D50 1,5 – 1,6 m
hard tag D40 1,3 – 1,4 m
mini square 1,3 – 1,4 m
Detection of tags depends also
on their quality (Q-factor values)
Drawings and technical information of this data sheets issued for marketing purposes only
and may not be reproduced or used to manufacture anything shown or referred to hereon
without permission from IRIDIUM LTD

Warranty: 2 years

Please click on photo and download you prospect:

EAS System RF Dual Omega Advertisment 8,2 MHz for hard tags and paper labels. Possible to synchronize a virtually unlimited (up to 100) number of systems.
