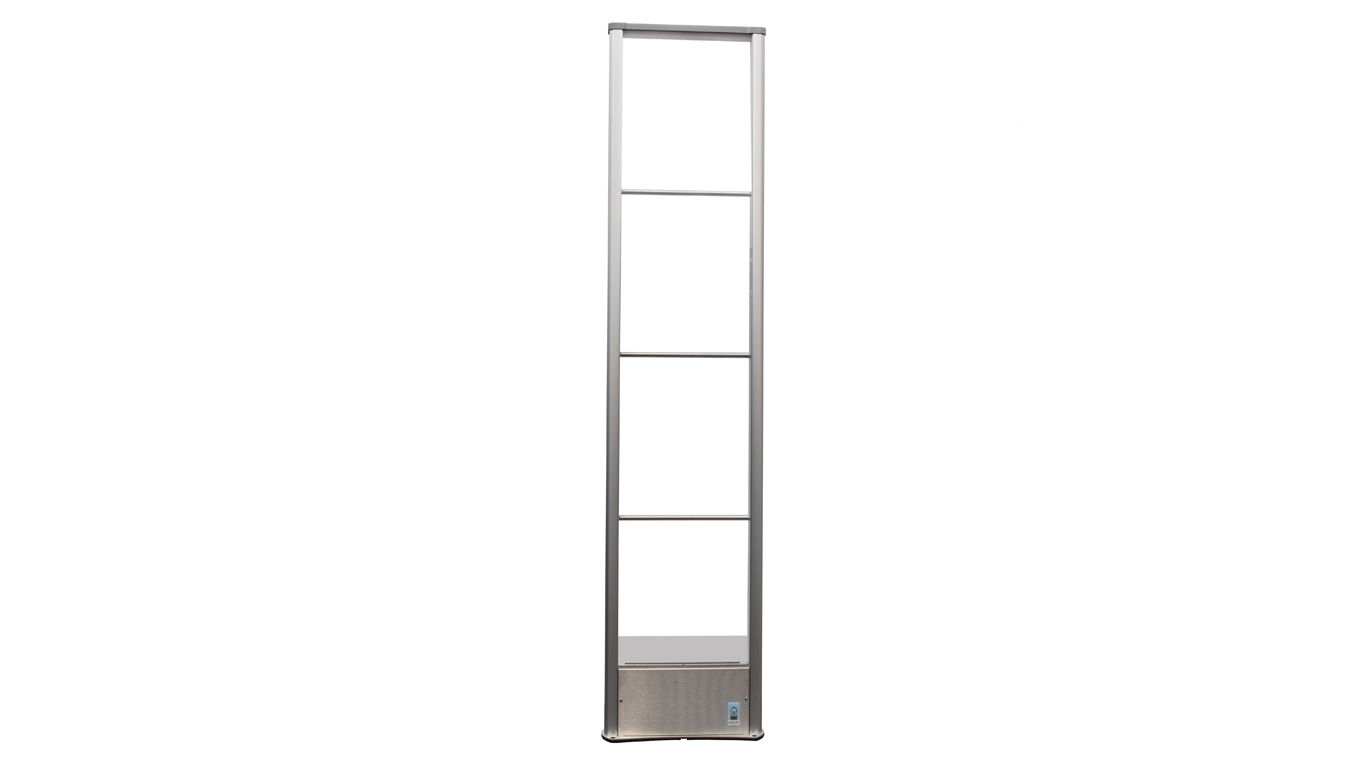

IRIDIUM OMEGA Basic

Kategória

IRIDIUM OMEGA BASIC

RF MONO EAS SYSTEM 8,2 MHz

Technical Specifications of Omega Basic RF Mono System:

Frequency: 8,2MHz RF
Weight: 6,8 kg
Power supply: 15V AC
Antenna: standalone
Material: anodized aluminium profiles with stainless box, base plate and top cover
Construction: strong
Alarm sound: piezo sirenne, 95 dB loudness
Alarm light: red color LEDs

General information:

◉ Easy to install. It is a real „plug & play“ mono system, no setup is needed
◉ It is possible to synchronize unlimited number of mono systems (by wire)
◉ Automatic synchronization is possible up to 6 mono systems (by air)
◉ Automatically detects mains frequency (50Hz or 60Hz)

Remote Control via internet:

◉ All parameters can be set up via remote WiFi internet connection

Electronic:

◉ Real time signal processing and SMD technology
◉ It detects „standing hard tags and paper labels“ close to the antenna and signalizes it to the staff
◉ DC version is available, because of very low power consumption
◉ It is covered with thin metal cover. It is both for a noise protection and unauthorized
acts prevention as well. All important information are printed on the cover
◉ Very simple and easy to replace (a few seconds)
◉ Automatically adjusts the parameters for optimal detection of hard tags and paper labels
◉ The system detection tree is flat and possible to adapt according to the customer‘s
requirements
◉ Transmitting frequency is automatically shifted from 7,8MHz to 8,5MHz with steps of
100kHz and accuracy of up to 6kHz. It detects all types of RF 8,2MHz hard tags and paper labels
◉ There is no additional tuning needed

Dimensions:

Detection distances table:

paper labels 3 x 3,9cm 2 x 0,7 – 0,8m
paper labels 4 x 4cm 2 x 0,8 – 0,9 m
paper labels 5 x 5cm 2 x 0,9 – 1,0 m
hard tags D50 2 x 1,15 – 1,2 m
hard tags D40 2 x 1,0 – 1,1 m
mini square 2 x 1,0 – 1,1 m
Detection of tags depends also
on their quality (Q-factor values)

Drawings and technical information of this data sheets issued for marketing purposes only and may not be reproduced or used to manufacture anything shown or referred to hereon without permission from IRIDIUM LTD.
